Looking at some auctions for another Westley to add to the collection when I came across this. Company knows guns so I believe what they say but it sure doesn't look like any Westley I've ever seen before. Company says that Westley Richards is engraved on the rib and locks. I've seen similar style locks but always on lower end Birmingham made guns.
[Linked Image from i.imgur.com]
[Linked Image from i.imgur.com]

Last edited by Mike Harrell; 06/01/23 06:43 AM.
Joined: Dec 2020
Posts: 1,018
Likes: 449
Sidelock
Offline
Sidelock

Joined: Dec 2020
Posts: 1,018
Likes: 449
Some of the guns they sold under their name were no doubt made for them in the Birmingham trade, particularly those where the serial number was Pre-fixed with a T.

Their Martini rifles made for Zud Afrika Republic were built on Francotte made actions with removable lock work.

If they put their name on it they must have considered it of merchantable quality.

Joined: Jan 2002
Posts: 13,544
Likes: 1433
Sidelock
**
Offline
Sidelock
**

Joined: Jan 2002
Posts: 13,544
Likes: 1433
Cannot see the pics, Mike.


May God bless America and those who defend her.
Joined: Aug 2013
Posts: 672
Likes: 55
Sidelock
*
Offline
Sidelock
*

Joined: Aug 2013
Posts: 672
Likes: 55
Doesn't look like one I have ever seen either.

Maybe someone on here has a copy of the Westley Richards book for reference:

https://www.westleyrichards.com/us/in-pursuit-of-the-best-gun-1812-2012-2nd-edition

Last edited by Dan S. W.; 06/01/23 01:54 PM. Reason: typo
Joined: Mar 2002
Posts: 3,158
Likes: 381
Sidelock
**
Offline
Sidelock
**

Joined: Mar 2002
Posts: 3,158
Likes: 381
Looks more like a W&C Scott.
JR


Be strong, be of good courage.
God bless America, long live the Republic.
Joined: Dec 2001
Posts: 3,627
Likes: 142
Sidelock
***
OP Offline
Sidelock
***

Joined: Dec 2001
Posts: 3,627
Likes: 142
I've seen a lot of Clayboughs with locks shaped as such.

1 member likes this: mc
Joined: Feb 2016
Posts: 3,369
Likes: 391
Sidelock
**
Offline
Sidelock
**

Joined: Feb 2016
Posts: 3,369
Likes: 391

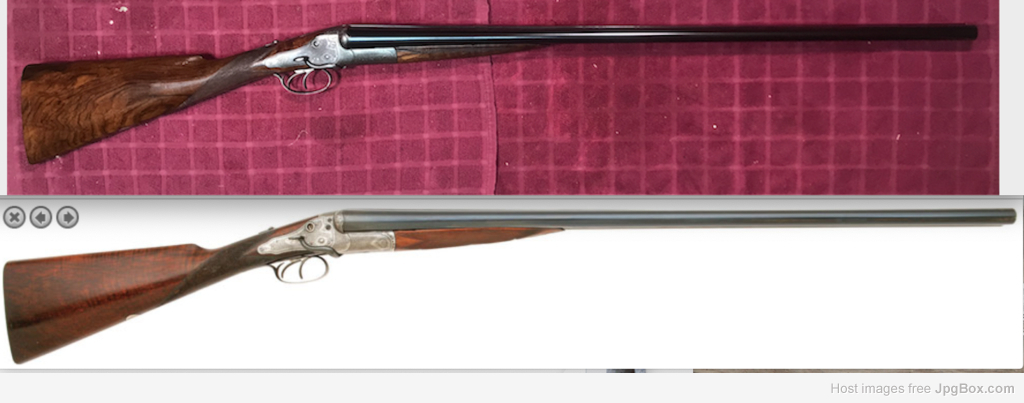

I think that's a W.C. Scott. With the addition to the loaded window it became their "triplex action" that they made for a number of gunmakers including H&H. Here is my Reilly side lever with its twin, former Terry Buffum's gun, which is up in Massachusetts someplace.

[Linked Image from jpgbox.com]

Better picture of the Scott Triple grip action:

[Linked Image from i.imgur.com]

Reilly with the Scott action without the window:

[Linked Image from i.imgur.com]

Last edited by Argo44; 06/01/23 08:49 PM.

Baluch are not Brahui, Brahui are Baluch
1 member likes this: campero
Joined: Dec 2001
Posts: 3,627
Likes: 142
Sidelock
***
OP Offline
Sidelock
***

Joined: Dec 2001
Posts: 3,627
Likes: 142
It's not the same lock shape. The "WR" is flat on the bottom and one continuous curve around the back end of the lock.

Joined: Oct 2006
Posts: 2,311
Likes: 589
Sidelock
**
Offline
Sidelock
**

Joined: Oct 2006
Posts: 2,311
Likes: 589
Looks like a Clabrough built gun to me.

Joined: Apr 2018
Posts: 375
Likes: 100
Sidelock
*
Offline
Sidelock
*

Joined: Apr 2018
Posts: 375
Likes: 100
if you notice the photos posted by argo44, both show actions with the forward edge of the locks into the bar being much shorter than those of the supposed wr gun (the contours of argo's pictures form almost an S shape from the rear of the fence into the forward edge of the bar). but, that having been said, i have seen guns with both long and short bar shapes, that i was convinced were both triplex grip scott's actions.

several things to look for; first and foremost - look at the top of the action, for the two screws that secure the trapdoor to access the original scott's screw grip mechanism; second, look for other telltale scott's traits....such as, the gas venting work on the standing breech, the scott's forearm release, etc., and pay attention to serial numbers. i've seen guns with two sets of numbers - one from the "maker", and another that position the action smack dap in the triplex grip era of scott's production....scott's records for production are pretty well nailed down - and are posted herein.

i have seen guns that the lock shapes are not the same as those in argo's photos - and were on obviously triplex grip scott's actions. i suspect that the contours shown above were somewhat an inhouse style by w & c scott - another form of fancy-back shaping.

best regards,

tom


"it's a poor sort of memory that only works backwards."
lewis carroll, Alice in Wonderland
