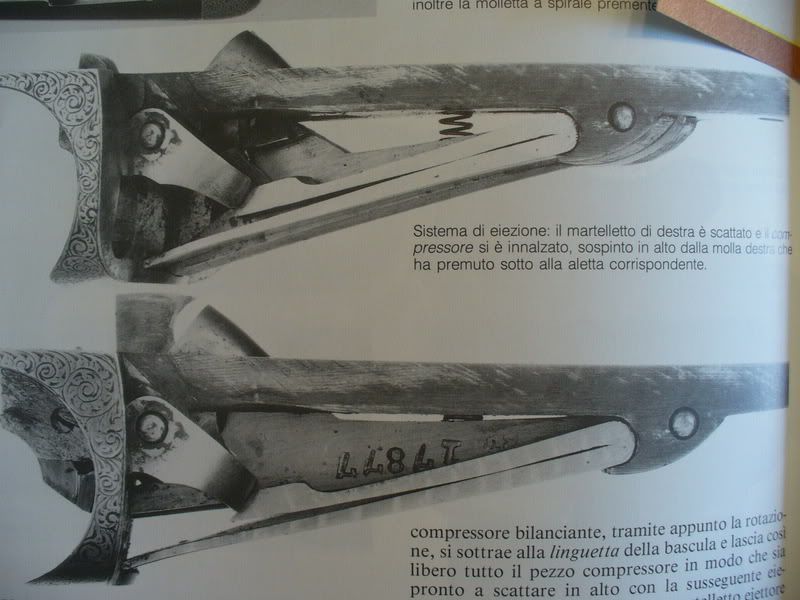

Does anyone know of a supplier for the "V" spring used to power Southgate ejectors ? I have a gun that has had them removed. Here is a picture of the system.

Try Peter Dyson
http://www.peterdyson.co.uk/cgi-bin/sh00...426_2b#aS426_2b
At times he is in the states and a great guy to talk to.Check his gun show dates to see when he may be around.He don't mind bringing stuff with him.

Daryl, since these systems were hand built won't there be a big variance in the springs from one gun to another? It's really a fairly simple spring and you'll probably be better off to have them hand made. Besides, any store bought spring is going to be cast, making it a second rate product.

Incidently, those are darned good pictures of the Southgate ejector.

Will and Joe, thanks. I didn't expect to find drop in springs, but it seems the Southgate type is a fairly common shape and possibly they could be fit to my gun. There must be a supplier to "the trade".

Dyson should have some. If he doesn't perhaps try Numrich? I haven't had your need yet but suspect that I would have Makinson or Whitman make them if I did. Thanks for posting that image.

Daryl I remembered a thread about springs and this may be it:

http://www.doublegunshop.com/forums/ubbt...true#Post102175

When I clicked the link in the first post it didn't work but I got Wolff:

http://www.gunsprings.com/1ndex.html

Google provided this likely looking website: http://www.gun-parts.com/springs/

Best,

Mike

Here is another thread on making the springs yourself out of piano wire:

http://www.doublegunshop.com/forums/ubbt...=true#Post61721

Best,

Mike

Check with Brownell's. They will either have "blanks," or know where to get them. Also, if you decide to make your own springs, they have good stock material (SAE 1095, as I recall) and will provide good technical assistance. Give 'em a call.

Daryl,....those springs are available from any of the suppliers to the gun trade,...I had some oversize blanks that came from Italy but used them all,...I think it was Salopian that posted the name of a place that supplies the gun trade in England.
Getting the spring will be half the battle,..fitting and properly timing them is not an easy job. I have some blanks that I had made but they will need hardening and tempering as well as fitting,... let me know

CJ

C J, thanks. Can you send your email address to me at darylh@theglobal.net . I cannot find your address and the pms don't work well.

I did a search for Salopian's suggestion and came up with this that looks promising.

http://www.helstongunsmiths.com/index.html

I have also emailed others you have mentioned above and I will let you know what I find. Daryl

helston will not export.

Daryl my email is down but this is what I have,...the top one is the southgate type and you will get a pair from that blank

You might also want to give these people a call

CJ

http://www.josephbrazier.com/history.html

SKB is correct, Helston will not export.

C.J. that is an interesting spring setup. I suppose it is common for gunsmiths, but I have never seen it before. Here is more info on my gun with some dimensions for the springs needed.

This is my gun----------

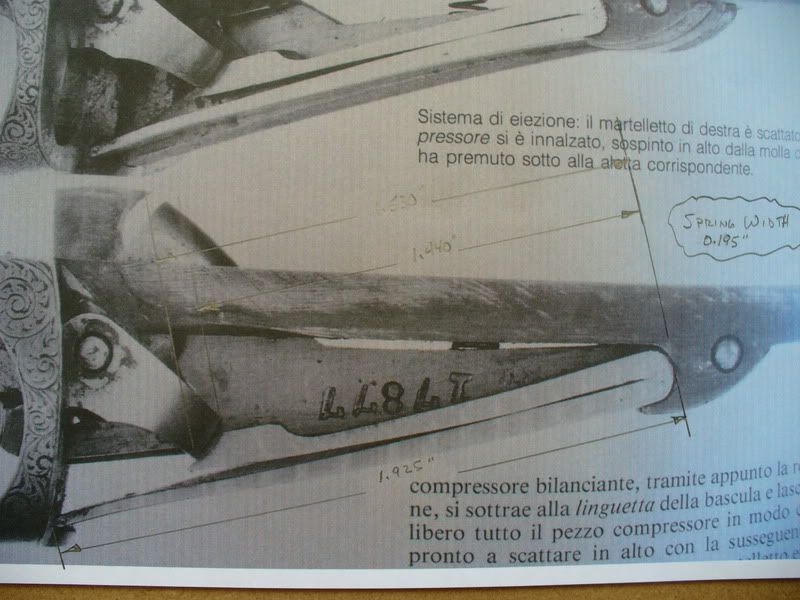

This is a similar gun with the dimensions of my gun added.----The dimensions, from top to bottom are 1.530", 1.440", and 1.925". Spring width is O.195".--------

CJ, Don't take this is any way as a critique; Seeing springs cut out of solid bar stock like that goes completely against all of my springmaking sensibilities! I think of springs as forged and bent with the grain running the length of the flex.

These look like an extraordinary waste of material with all the wrong grain structure. Are they pre-hardened and tempered?

Now, I've got to admit I used investment cast steel spring in building and shooting flintlocks for a couple of decades, and I can't ever remember a Siler mainspring breaking! Siler being the most popular flintlock ever made, original or reproduction.
But what an advantage for making/replacing a spring! Modern metalworking is genuinely beyond my ken....

Steve, I've had Jud Brennan hand forge a number of springs to replace the cast ones on my Silers and the difference is remarkable in smoothness of the hammer and frizzen throw. I do have to agree that a well cast spring from the proper metal is pretty reliable.

So did I Steven,…until I tried it. A couple of these have been in service for some time now with excellent results.
It all started with the small spring you see in the picture, the one with the pin hole. I had a high quality French double with a broken top lever spring, I looked for a replacement for quite some time but had no luck,...nothing ever came close and since I didn’t feel like making one from scratch I decided to give this a try,…the method is not new, I talked to the manager of a heat treating firm here and was told that springs of similar design but used for different applications are regularly wire cut,…he also provided me with the precise heat treating instructions for the steel I used,…. have also heard from a reliable gun making source that one of England’s top shelf makers may be making springs this way as well.
Investment casting offers no particular grain structure and a well cast spring will do it’s job, I believe that this method will yield superior springs than could be had by casting, not to mention the versatility to do any shape and size desired

I drew the shapes in CAD, using the existing springs for reference making sure perfect tapers were maintained, that’s the beauty of wire EDM,… it’ll cut exactly what you draw.

Wire cutting is not cheap and most shops that do it wouldn’t bother with a small job like this so I had to cash in on a couple of favors,…the steel is soft O-1 and there is about a grand worth of machine time there with three different spring types,… if I had to pay someone to design and draw it all it wouldn’t have made any sense…but since it didn’t cost me anything I look at it as a successful learning experience

CJ

Daryl, this spring will work just fine, the blank is almost wide enough to get three out of it and the length will accomodate your numbers with a few thou to spare,...just remember you will need to cut , harden , temper and fit this,...and timing the ejectors probably being the most difficult part.

CJ

Joe, Thanks for the insight, I was refering to the durability of cast springs. I'll bet Jud can forge for improved geometry and function.

I never ceased to be amazed CJ! Not only do you understand and perform excellent handwork, but CAD and modern manufacturing techniques as well!?!?

EDM "wire" cutting is one of the more aptly named processes; I envision a micro-jeweler's saw blade hard at work. I'll bet they work like a charm. After (in the case of the ejector spring) the many hours of gunsmithing required to cut, fit, harden, temper and tune them.
Great photo too!
Thanks, Steve

Steven,...here is a set of Lefever ejector hammers I made last year,...was a lot more difficult to dimension out and draw but the parts were so precise that they are totally interchangeable with the 100 year old hammers they will replace

CJ

I was very impressed to see the application of wire cutting technology for the manufacture of replacement action components. In particular because we have seen your expertise in traditional methods. For your interest, Purdey is using wire cutting technology as part of their manufacturing process. This method of production offers excellent potential for reducing the cost of action and lock components made in small batches.
