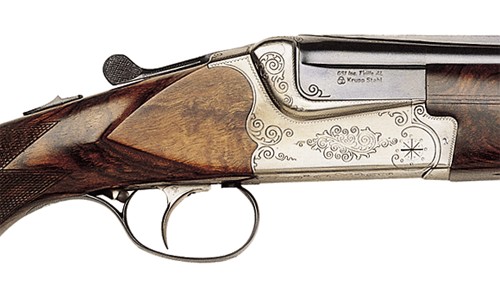

Click on image for close up view

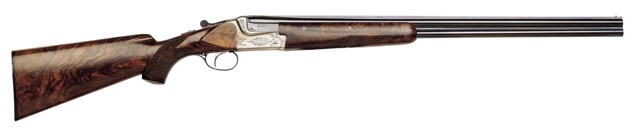

Merkel Model 2000EL - Over & Under Shotgun

One hundred years of continuous refinement have led to the introduction of the new 2000EL series over under shotguns. This new design combines the aesthetic beauty of handcrafted engraving and hand checkering with the precision machining and exact tolerances offered by the latest CNC and EDM production technologies. The new action features an Anson & Deely style boxlock action and has a unique disconnectable ejector system which gives the user the option of selecting automatic ejector or extractor operation on this shotgun model.

Action:
Self-cocking, modified Anson and Deely boxlock. Locking Mechanism Kersten double cross-bolt lock with release.

Triggers:
Single selective or double triggers. Safety Manual, tang-mounted sliding safety.

Case Ejection:
Coil spring ejectors convertible by user to extractors.

Barrel:
Special cold hammer-forged steel, demibloc construction, solid sighting rib.

Lengths:
12 gauge-28 inch/710mm
20 gauge-26 3/4 inch/680mm
28 gauge-26 3/4 inch/680mm
*Sporter specs at bottom of page.

Bores:
12 gauge-3 inch chambers.
20 gauge-3 inch chambers.
28 gauge - 2 3/4 inch chambers.

Stock:
English or pistol grip, oil-finished luxury grade walnut with three-piece forearm.
*Sporter specs at bottom of page.

Receiver:
Silver-grayed receiver with Arabesque engraving.

Weight:
12 gauge approximately 7.0 lb./3.2 kg
20 gauge approximately 6.4 lb./2.9 kg
28 gauge approximately 6.4 lb./2.9 kg




2000EL Sporter Configuration

The features that distinguish the 2000EL Sporter from the regular 2000EL are the longer barrels (30" on the 12-gauge, 28" on the 20 and 28-gauge), the Skeet/Improved Cylinder chokes, and the ventilated forearm which allows the barrels to cool quicker. Stocked in luxury grade Turkish Walnut and offering superb handling, characteristic of a Merkel over and under, this Sporter model is an excellent choice for clay shooting enthusiasts.
